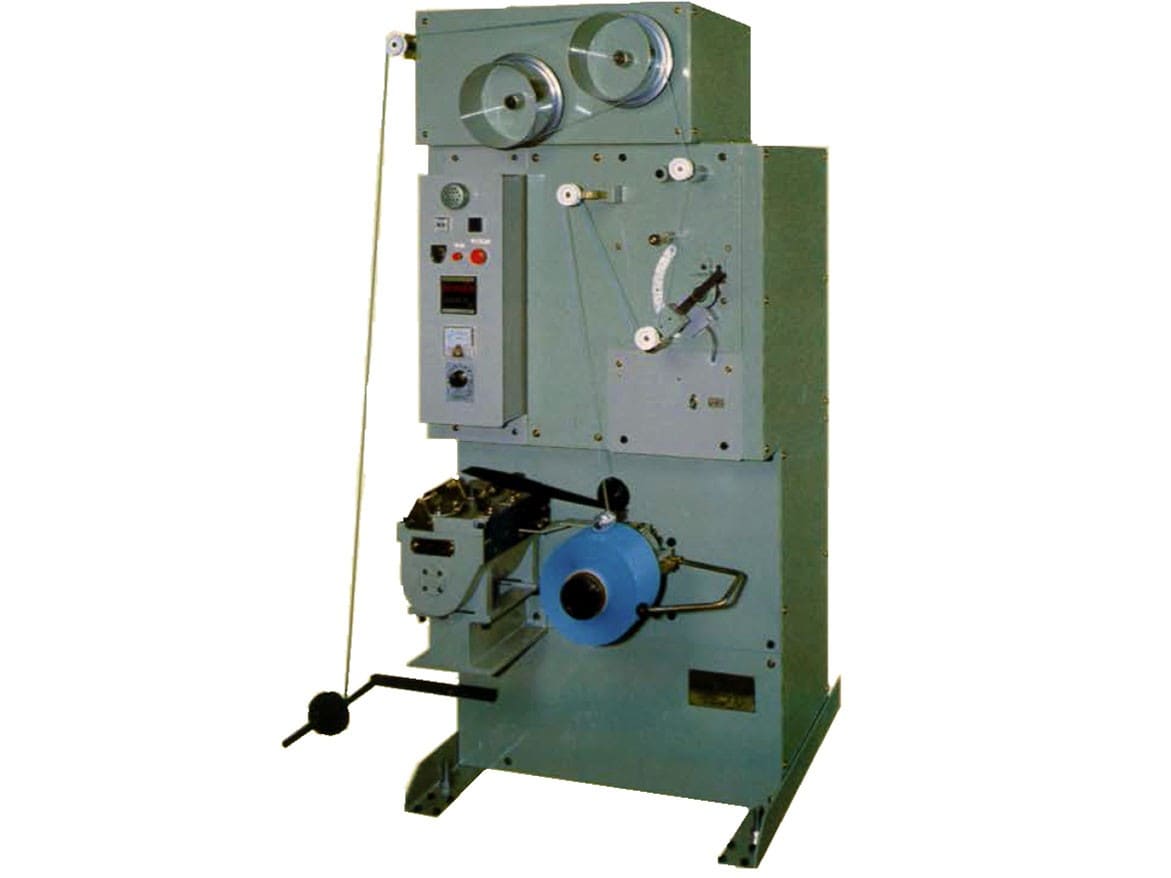

When winding slit tapes, in many cases they are wound onto a narrow reel the width of the tape to prevent damaging the product. However, this results in a small amount of material being wound on the reel and subsequently decreasing efficiency in the following process. Traversing the material with a guide can put more material on the package, but can result in distortion, bending, or wrinkles in the product. winding. The EFT bobbin traverse winder can solve these problems and wind flat materials onto the bobbin. It traverses the bobbin assembly instead of the tape itself.
Applicable Materials
Flat materials like tape with 3 to 20mm
Machine Frame
One of multi spindle on the frame
Driving Mechanism
Spindle drive
Control Device
By SCR control with dancer roller
traverse Mechanism
Carbon fiber and others
Bobbin traverse by means of scroll cam, variable traverse mechanism
50 ~1,000g with tension release
Shape of Package
1)Square end or taper end cheese
2) traverse Length: Variable 55~155mm or 150~250mm
Package Diameter
Maximum 400mmø
Winding Speed
Maximum 100m/min
Motor & Electricity
Variable speed type AC motor 100W 3 phase 200/220V 50/60HZ
