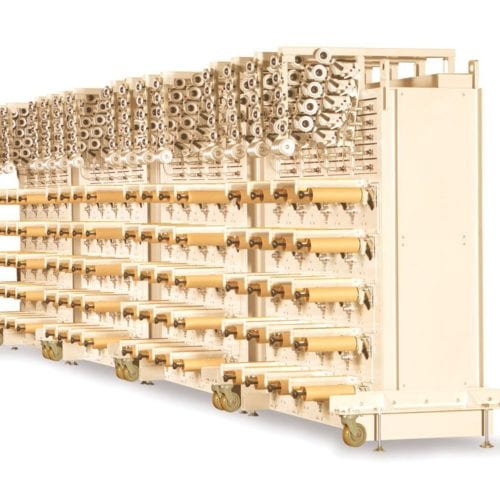

Take up machine for winding Pan or Pitch carbon fibers, aramid fibers and other high performance fibers. This winder has been one of the most popular winders for the carbon fiber production industry, taking up the carbon fiber as it is produced.
This machine in the KTW series offers a double spindle automatic bobbin change feature. This feature contributes to labor saving and space saving, for take up of continuous fiber production. The auto bobbin change feature activates once the package has reached a pre-set yardage.The unit is ideal for carbon fiber, as well as higher speed aramid fibers.
Model KTW-C is controlled by a torque motor with 5 head high layout pursues most economical investment of take up machine for winding Pan or Pitch carbon fibers, aramid fibers and other high performance fibers.
EKTW-CA-050D is designed specifically to wind heavy tow 50K carbon fiber for automotive or general industrial grade applications. This winder is a lower cost alternative than the traditional single position winder as it can wind two packages on one winder spindle.
EKTW-CAX an auto-doff winder, and is the programmable version of the EKTW-CA-050D. This winder is available in single cop and 2 cop models, and is available in a large diameter package model as well.
Take up winder for winding Pan or Pitch carbon fibers, aramid fibers and other high performance fibers. This winder is a computerized version of our mainstream production winder EKTW-C. It offers electronic setting changes via the main HMI, including the following features:
This is a lab scale version of the EKTW-CX, single position or a smaller bank of wind heads. Take up machine for winding Pan or Pitch carbon fibers, aramid fibers and other high performance fibers. This winder is a computerized version of our mainstream production winder EKTW-C. It offers electronic setting changes via the main HMI, including the following features:
The EKTL-20D is a take up winder suitable for precursor of pan carbon fiber and also heavy industrial yarns like tire cord, to take up onto large package. This machine is also available in product numbers: EKTL-26D and EKTL-29D. These differ in traverse length and package diameter, which also results in a change in package weight.
For high performance fibers (carbon fiber, ceramic fibers, aramid fibers, glass fibers, etc.) or industrial (tire cord, etc.) Manual one to one. Yardage meter stops machine automatically at preset yardage. For creeling applications where small package is required, as well as R&D and laboratory use.
The KTAW automatically rewinds carbon fiber or other fibers to empty cores, making smaller bobbins out of the full bobbin. This unit is especially useful for making small packages for use in large creel systems, dramatically lowering material costs by eliminating the need to load creel with full bobbins of carbon fiber.
EKTW-CLH is designed for high speed take-up, max capability is 600m/min. This winder is used for aramid fibers, nylon fiber, polyester fibers for high speed processes such as coating or heat treatment of the fibers.
EMFT-BT is designed for winding flat materials without damaging, bending, or twisting the tape. This winder is used for materials such as tow-preg, tapes, flat yarns, slit film materials, slit prepreg.
