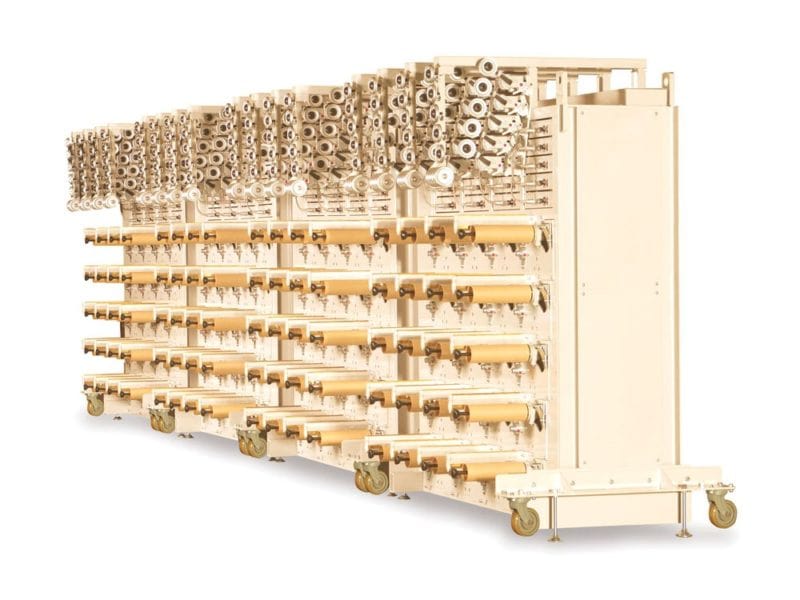

EKTW-C
Request Info & PricingTake up machine for winding Pan or Pitch carbon fibers, aramid fibers and other high performance fibers. This winder has been one of the most popular winders for the carbon fiber production industry, taking up the carbon fiber as it is produced.
Driving Mechanism
Individual drives on each spindle, AC motor
Shape of Package
254mm(10”) traverse, square-end cheese, Maximum diameter 250mmø
Winding Tube
ID 76ø X OD 86ø X 305mml or 280mml
Winding Speed
Maximum 200m/minute (speed is determined by OD of bobbin, number of wind and tension)
Yarns Applicable
Carbon fiber and others
Tension
50 ~1,000g with tension release
Contact Pressure
0.8 ~3kg with pressure release, button-touch type
Motor
Totally enclosed, fan cooled AC motor, motor is a variable speed type 100w
Electricity to Winding Unit
3 phase 200V 50/60HZ
Construction Frame
3~5 head high layout x 1 ~5 lines/frame
Dimension
1,365mm (W) x 2,180mm (H)
Length
718mm (5sp), 1000mm (10sp), 1384mm (15sp), 1768mm (20sp), 2152mm (25sp)
