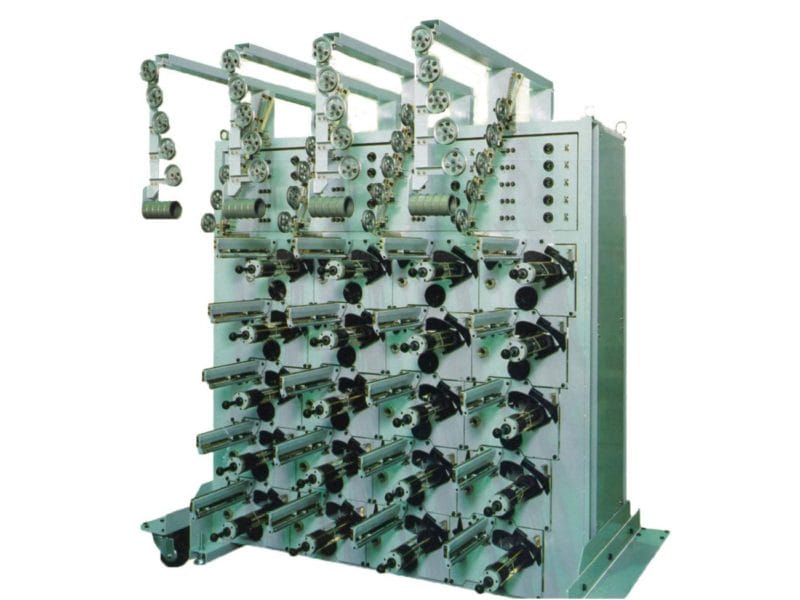

KTW-C
Request Info & PricingModel KTW-C is controlled by a torque motor with 5 head high layout pursues most economical investment of take up machine for winding Pan or Pitch carbon fibers, aramid fibers and other high performance fibers.
Driving Mechanism
Individual drive on each spindle by torque motor
Traverse Mechanism:
Guide traverse by means of scroll cam
Shape of Package
254 mm(10″) traverse, 0°-0′ square-end cheese,Max. 250ømm
Winding Tube
ID. 76ø x OD.86ø x 305 Lmm
Winding Speed
0~15m/min.
Yarns Applicable
N/A
Tension
300~1,000g with tension release
Contact Pressure
1.5~3kg with pressure release
Motor
Torque Motor
Inverter:
Option
Volt-slider:
Option
Construction/Frame:
5 head high layout x 1 line~5 lines frame
Width:
1,365mm
Height:
2,180mm
Length
728mm (5sp), 1010mm (10sp), 1394mm (15sp), 1778mm (20sp), 2162mm (25sp)
