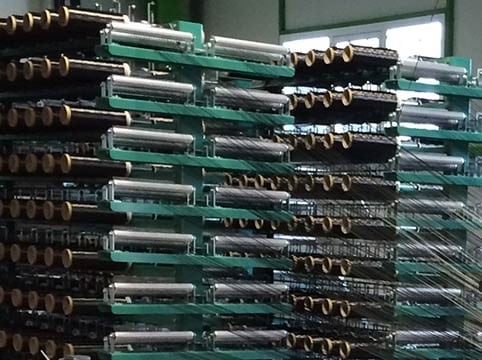

CF-S2 Series Creel
Request Info & PricingThis model is based upon the same principles as the ST series, but aimed at low cost / large scale creels. Common applications for this creel are large scale (over 800 positions)
creels for weaving, multi-axial machines…etc.
Tension Range
– 130 (grams) (+/- 15gram adjustability) / 250mm(10″) traverse
– 80 (grams) (+/- 15gram adjustability) / 150mm(6″) traverse
– Can also be configured for both 250mm(10″) and 150mm (6″) simultaneously
Speed Range
– 0 (m/min) to 25 (m/min)
Compatible Package Sizes
– 74mm (3″) ID core x 150mm (6″) to 250mm (10″) traverse
– Other sizes available on request
Max Package Diameter
– 180mm
Creel Framework
– Type 1: Steel welded construction: Maximum cost effectiveness
– Type 2: Steel bolted construction: For compact shipping
– Standard and custom configurations available
Optional Items
– Fiber breakage sensors
– Ceramic eyelet or pigtail guides
– Mobile creel on casters
– Creel outlet combs and redirect rollers
Mounting
– CF-S2 tensioning component can be purchased for mounting to existing framework.
