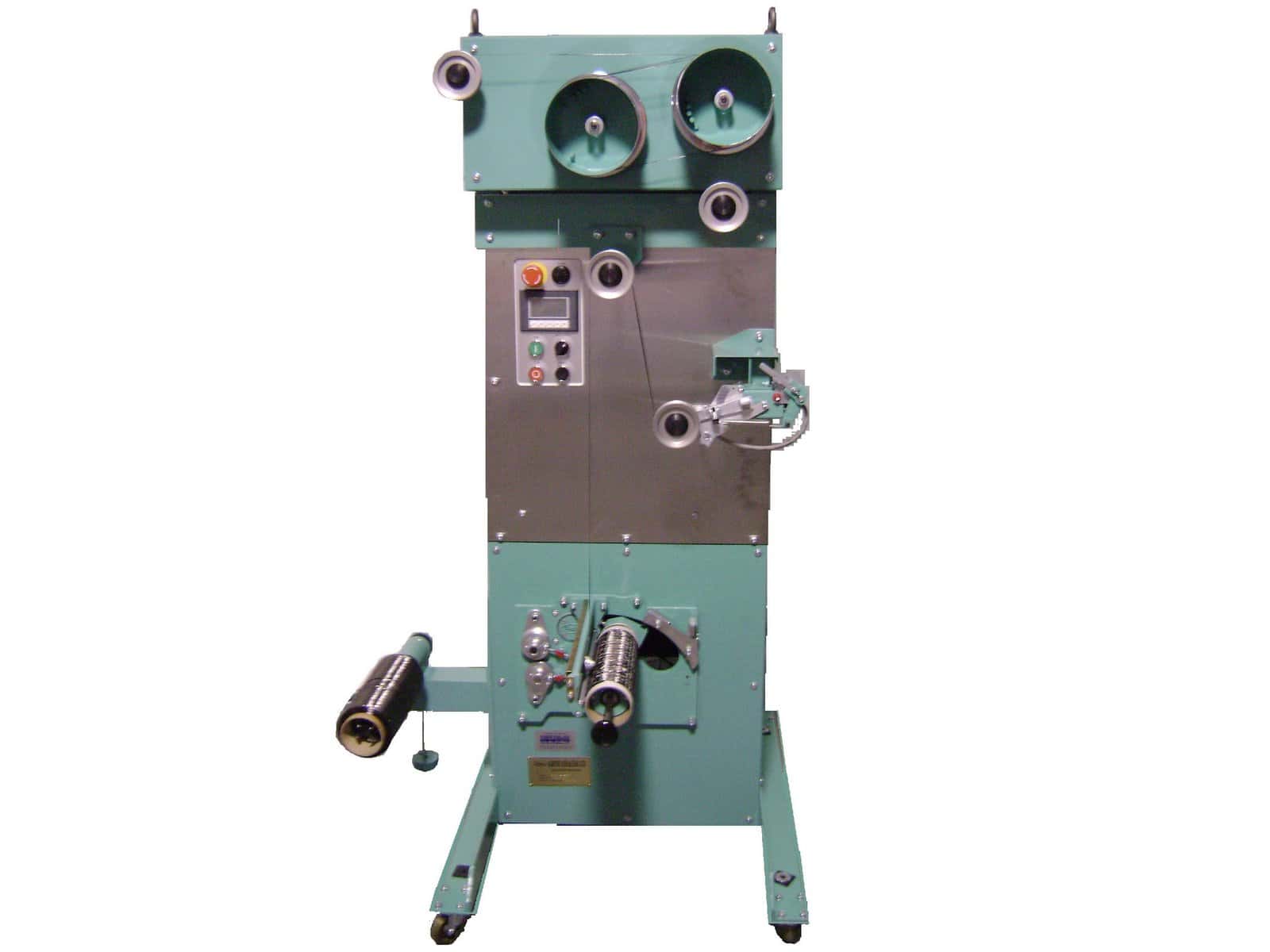

EKTW-CL-FR
Request Info & PricingFor high performance fibers (carbon fiber, ceramic fibers, aramid fibers, glass fibers, etc.) or industrial (tire cord, etc.) Manual one to one. Yardage meter stops machine automatically at preset yardage. For creeling applications where small package is required, as well as R&D and laboratory use.
Machine Frame
1 spindle on individual frame with caster
Denier range of Yarn
1,000~20,000
Traverse Mechanism
Guide traverse by means of scroll cam
Control Device
By SCR control with dancer roller
Shape of Package:
Traverse Length
6”,8”,10” or 12”
Maximum Diameter
250mmø
Winding Tube
ID 76mmø
Winding Speed (can be changed by wind ratio)
10~100 m/min.
20~200 m/min.
35~350 m/min.
Tension
50~1,000
Contact Pressure
2~4.5kg
Feed Roller
Nelson Type
Hard chromium plated, dual roller
Slow start/stop device
Automatic stop for full package and yarn break
Yarn Length Control
Digital type yarn counter (option)
Yarn speed meter
M/min. (digital indication)
100W motor
In general, for lower tension and lower yarn speed; Lower than 100m/min.
When tension is lower than approximately 300g, yarn speed is slower than 200m/min.
200W motor
For standard machine, control device by means of potentionmeter is available, similar to EKTW-C type.
